Vacuum Furnace/Vacuum Tempering Furnace
Equipment description outline
| Processing method: | Quenching- vacuum heating and pressurized N2 cooling Tempering- hydrogen is injected into the furnace after vacuum to create a reducing atmosphere. This can ensure that the surface of objects are not oxidized. |
| Advantages: | Cooling and pressure of quenching can be adjusted in order to reach the target of reducing the numbers of objects with shape changes. |
| Effective size: | (LxWxH) 2100x850x670 mm |
| Maximum temperature: | 1250℃ |
| Maximum weight: | 1000 Kg |
| Scope of application: | ．Quenching and tempering of SKD steel
．Solution of Austenite stainless steel ．Quenching and tempering of Martensite stainless steel ．Quenching and tempering of high-speed steel (i.e. SKH) ．Precipitation-hardening of beryllium copper ．And, elastic tempering of stainless steel slices |
| Range of materials: | SKD, SKH, Martensite stainless steel, Austenite stainless steel, and beryllium copper. |
| Range of products: | Progressive stamping dies, dies, die-casting molds, shaving molds, plastic molds, trimming dies, stainless steel range of fishing hooks, wire sliding tracks, containers, lamp shells and clips. |

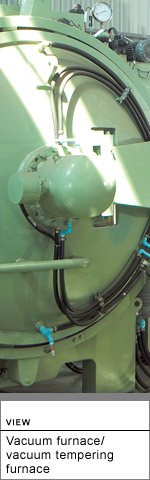

| Product images: |
|
